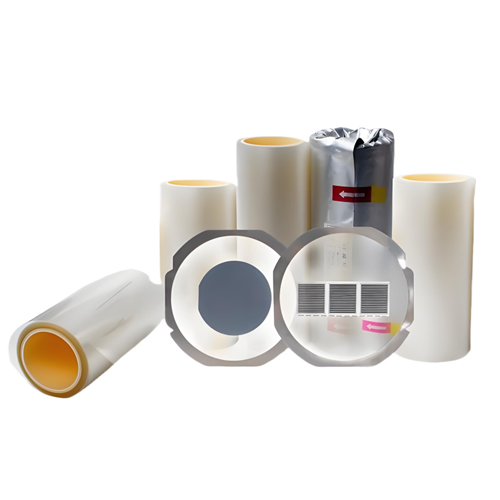

AlphaPro wafer dicing tape is not only suitable for ordinary wafers but also meets the cutting needs of small and medium-sized wafers.This tape has strong adhesion ,good elasticity, and is very stable. Its function is to firmly fix the wafer during cutting to prevent the chips on it from falling off.At the same time, due to tape's sensitivity to ultraviolet light, the stickiness becomes smaller under UV light.The wafer can be easily uncovered without leaving any residue.It ensures cutting accuracy and also improves the efficiency of chip collection.
Name |
Model |
Total Thickness μm |
Substrate |
Viscosity Before/After Peel N/cm |
Debonding Process |
Color |
---|---|---|---|---|---|---|
BG Tape |
ABGT110 | 110 | PO | Si:0.8/0.8 | Non-UV |
Blue |
Dicing Tape |
ADCT90 | 90 | PO | Si:3.2/0.05 | UV intensity :230mW/cm² UV Energy :300mJ/cm² |
Blue |
ADCT110 | 110 | PO | Si:5/0.08 | UV intensity :230mW/cm² UV Energy :300mJ/cm² |
||
ADCT170 | 170 | PO | Si:8.8/0.01 | UV intensity :230mW/cm² UV Energy :300mJ/cm² |
||
Non-UV Curable Dicing Tape |
AHDB70 | 70 | PET | Si:2.4/0.04 | 90℃/1-5mins |
OOpaque |
AHDB110 | 110 | PET | Si:2.4/0.06 | 90℃/1-5mins | ||
QFN Masking Tape |
CQMT30 | 30 | PI |
Rollpressing:0.1 Heat lamination:2.2(<230℃) |
/ |
Brown |
CQMT40 | 40 | PI |
Rollpressing:0.1 Heat lamination:2.5(<230℃) |
/ | ||
UV Releasing Adhesive Tape |
AUVDB65 | 65 | PET | >3.2/0.04-0.08 | 3000mJ/10s LED 365nm |
OOpaque |
AUVDB95 | 95 | PET | >3.2/0.04-0.08 | 3000mJ/10s LED 365nm |
以上为行业常用标准规格,其他规格可根据需求提供;
上述数据在标准、稳定的实验室环境下测试获得,实际参数请按照实际应用场景数据。
*Data and spec above are the commonly used standard in the industry, for other spec can be provided according to your needs (please leave us message). And the data are obtained through testing in standard laboratory environment. For actual parameters, please refer to the data of the actual application scenario.
