AlphaPro's solution has high thermal conductivity, high viscosity and wettability, and can help electronic devices dissipate heat quickly. This series has multiple specifications to choose from, ranging from 10um to 100um, which can provide more flexibility for electronic device design.
| MODEL | NAME | COLOR | Shore |
Density |
Dielectric constant | Thermal conductivity coefficient W/（m.K） |
|

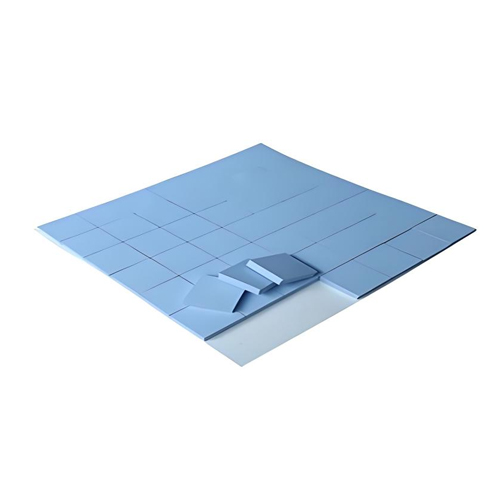

Thermal silicone pad |
TP40-2 | GREY/BLUE | 40 | 2.8 | 5.8 | 2 |
| TP50-4 | BLACK | 50 | 3.0 | 7.0 | 4 | |
| TP50-5 | GREEN | 50 | 3.3 | 7.9 | 5 | |
| TP50-6 | GREY | 50 | 3.3 | 8.0 | 6 | |
| TP60-12 | GREY | 60 | 3.3 | 9.0 | 12 |
| MODEL | NAME | COLOR | Density g/cm³ |
Dielectric constant | Thermal conductivity coefficient W/（m.K） |
| One-component thermal gel | TG1-4 | GREEN | 3.4 | 7.0 | 4.0 |
| TG1-7 | GREY | 3.4 | 8.7 | 7 | |
| TG1-10 | RED | 3.5 | 9.0 | 10 | |
| Two-component thermal gel | TG2-4 | A：BLUE B：WHITE |
3.3 | 6.8 | 4.0 |
| TG2-6 | 3.5 | 7.3 | 6 |
以上为行业常用标准规格，其他规格可根据需求提供；
上述数据在标准、稳定的实验室环境下测试获得，实际参数请按照实际应用场景数据。
*Data and spec above are the commonly used standard in the industry, for other spec can be provided according to your needs (please leave us message). And the data are obtained through testing in standard laboratory environment. For actual parameters, please refer to the data of the actual application scenario.
